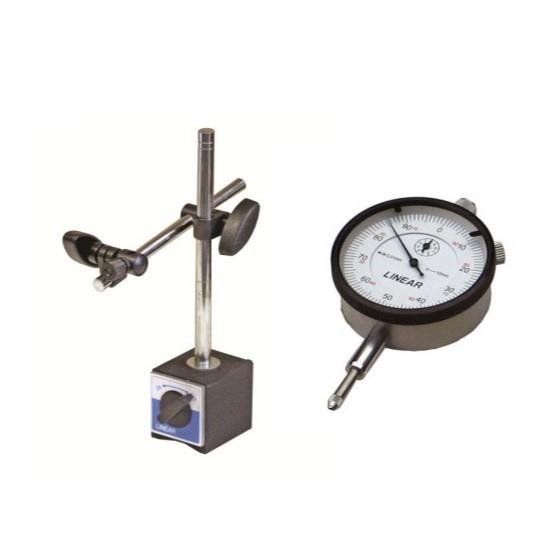

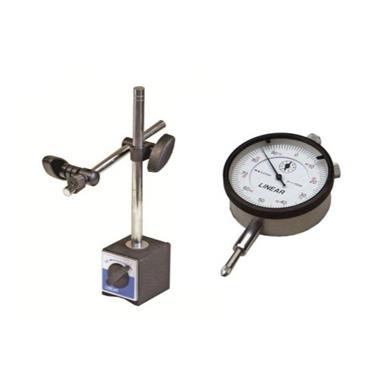

Linear Mb-1 Magnetic Base and Dg-M Dial Gauge Kit

Product Description

LINEAR MB-1 MAGNETIC BASE and DG-M DIAL GAUGE KIT

Magnetic Base with solid cross arm
Holds Plunger and Lever Indicators
Plunger Indicators held on Lug Back or 8mm Stem
Lever Indicators held on spigots
Overall Height: 230mm
Main Upright Post: 12mm dia. with M8 x 1.25 thread
Solid Cross Arm: 10mm dia. x 150mm long
Magnetic Base with ON/OFF switch
Magnetic Pull: 40kg (400N)
Magnet Size: H=55mm W=50mm D=60mm

Dial Indicator General Specifications:
Adjustable dial
Hardened and ground racks
Bezel lock
Lug back fitting
Fitted with ball anvil
Anvil thread 2.5mm
